30-Day DIY Electrical Panel Cost-Saving Guide – Day 3
After selecting circuit breakers on Day 2, the next major cost factor in building a distribution panel is busbars and wiring. Many buyers overpay here—not because of price, but because of over-specification or wrong material choices. Busbars and wiring can account for 15–25% of total panel cost.
By choosing the right material, correct sizing, and direct sourcing, you can save significantly without compromising safety.

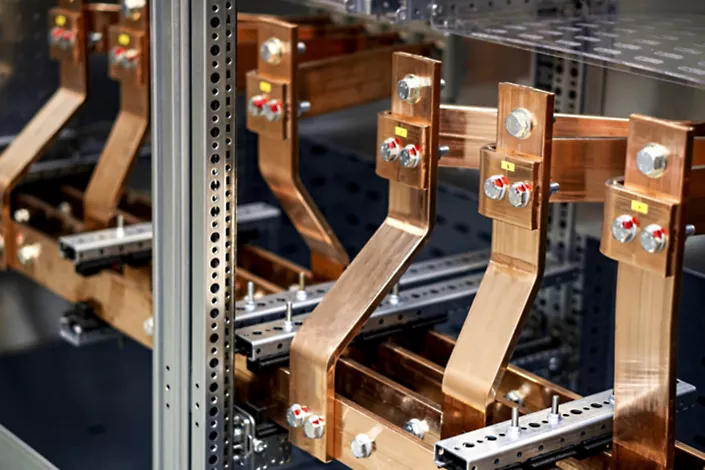

Step 1: Choose the Right Busbar Material
Busbars are the backbone of your electrical panel. The most common materials are:
- Copper Busbar (Recommended)
- High conductivity
- Stable performance
- Ideal for industrial and high-load systems
- Aluminum Busbar (Cost-saving option)
- Lower cost
- Suitable for low/medium load applications
- Requires proper surface treatment
👉 Tip: For most commercial panels, T2 copper busbar offers the best balance between performance and cost.
Step 2: Avoid Oversizing
Many engineers choose oversized busbars “just in case,” which increases cost unnecessarily.
- Match busbar size with actual load current
- Consider future expansion (but don’t double oversize)
👉 Example:
A 100A system does NOT need a 250A busbar.
Step 3: Select the Right Wiring
Wiring affects both safety and long-term performance.
- Use copper wires for stability and lower resistance
- Choose correct cross-section (mm²) based on load
- Use certified insulation (PVC / XLPE)
👉 Wrong cable size = heat + energy loss + safety risk
Step 4: Source from the Right Suppliers
- Buy busbars from metal suppliers or factory-direct sources
- Avoid retail packaging markups
- Request custom cutting to reduce waste
Step 5: Optimize Layout to Save Material
A well-designed panel reduces:
- Cable length
- Busbar waste
- Installation time
👉 Smart layout = lower cost + better heat dissipation
