Intelligent Residual Current Circuit Breaker with Auto Reclosing: A Complete Guide for Reliable Power Protection
In modern power distribution systems, downtime is no longer acceptable. Whether in industrial plants, commercial buildings, or utility networks, electrical protection devices must go beyond basic safety — they must ensure continuity, intelligence, and reliability.

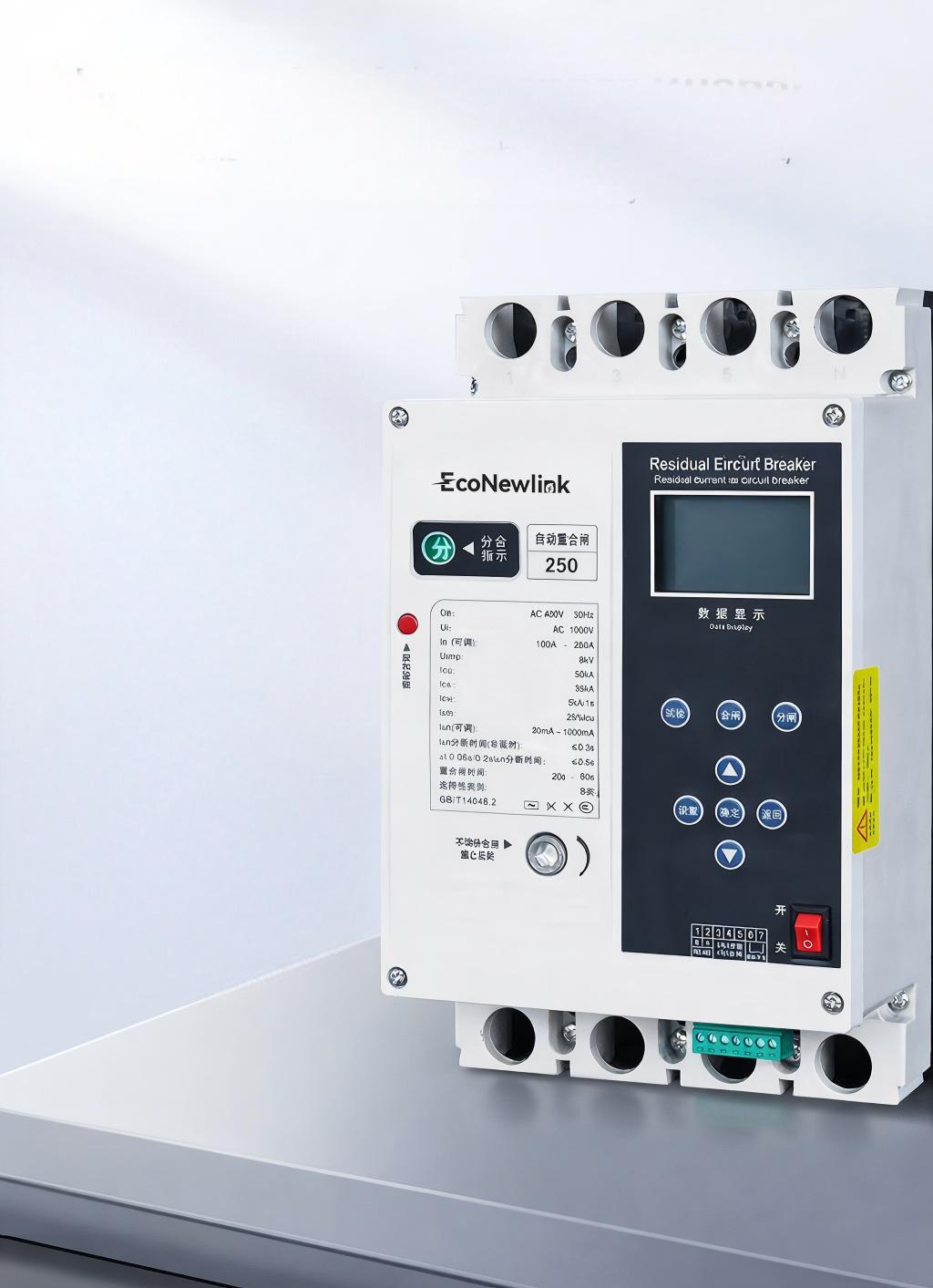

The CBRM3EL Intelligent Residual Current Circuit Breaker with Auto Reclosing is designed exactly for this purpose. It is not just a circuit breaker, but a smart power protection system that integrates monitoring, protection, and automatic recovery.
What Is an Intelligent Auto-Reclosing RCCB?
An intelligent residual current circuit breaker (RCCB) combines traditional protection functions with real-time monitoring, leakage detection, and automatic reclosing capability.
It is specifically designed for:
-
AC 400V / 50Hz systems
-
Rated current up to 800A
-
TT grounding distribution networks
Unlike conventional breakers, it actively detects, analyzes, and responds to electrical faults in real time.
Key Features and Functions
1. Smart Microprocessor Control
Equipped with a 32-bit ARM processor, enabling real-time signal processing and intelligent control decisions
2. Residual Current (Leakage) Protection
-
Adjustable leakage current (50–800mA)
-
Continuous monitoring of ground fault conditions
-
Helps prevent electrical fires and insulation failures
3. Auto Reclosing Function
-
Automatically restores power after temporary faults
-
Reclosing time: 20–60 seconds
-
Significantly reduces downtime and manual intervention
4. Multi-Layer Protection System
-
Overload protection
-
Short circuit protection
-
Overvoltage & undervoltage protection
-
Phase loss protection
5. Three-Stage Protection Logic
-
Long delay (overload)
-
Short delay (selective coordination)
-
Instantaneous trip
This ensures precise and selective protection in complex systems.
6. Real-Time Monitoring & Display
-
Voltage, current, and leakage status
-
LCD interface for easy operation
-
Fault identification and history storage
7. Remote Communication (Optional)
Supports:
-
Remote monitoring (telemetry)
-
Remote control
-
Remote parameter setting
Ideal for integration with SCADA or energy management systems
Applications
This intelligent breaker is widely used in:
-
Industrial manufacturing facilities
-
Commercial buildings & malls
-
Switchgear and distribution panels
-
Utility power networks
-
Renewable energy systems (solar / hybrid)
It is especially suitable for projects requiring high reliability and minimal downtime.
Why It’s Better Than a Traditional Circuit Breaker
1. From Passive Protection to Intelligent Protection
Traditional breakers only react after faults occur.
This device provides real-time monitoring and proactive protection.
| Feature | Traditional MCCB | This Product |
|---|---|---|
| Reset Method | Manual | Automatic |
| Leakage Protection | Optional | Built-in |
| Monitoring | None | Real-time |
| Fault Records | No | Yes |
| Remote Control | No | Yes |
| System Downtime | High | Minimal |
2. From Manual Reset to Automatic Recovery
Conventional breakers require manual intervention.
This breaker ensures automatic power restoration, reducing labor and downtime.
3. From Single Function to Multi-Protection System
Standard MCCB = overload + short circuit
This breaker adds:
-
Leakage protection
-
Voltage protection
-
Phase failure detection
4. From Fixed Settings to Adjustable Intelligence
Traditional breakers have fixed parameters.
This model supports:
-
Adjustable protection thresholds
-
Configurable delay curves
-
Adaptive leakage tracking
5. From “Black Box” to Transparent System
Conventional breakers provide no data.
This breaker offers:
-
Real-time system visibility
-
Fault recording and analysis
-
Remote monitoring capability
Engineering Advantages (For System Designers)
-
Supports selective coordination with upstream/downstream breakers
-
Reduces risk of full-system shutdown
-
Compatible with TT grounding systems
-
Easy integration into existing switchgear systems
-
Strong anti-interference capability for industrial environments
Commercial Value (For Buyers & Distributors)
-
Reduces maintenance costs through auto reclosing
-
Minimizes downtime and operational losses
-
Lower after-sales risk with stable performance
-
Suitable for EPC, utility, and government projects
-
Supports OEM customization and bulk supply
User Benefits (For End Users)
-
Ensures continuous power supply
-
Improves electrical safety
-
Prevents fire risks caused by leakage
-
Easy to operate with clear interface
-
No need for frequent manual reset
Technical Highlights
-
Rated voltage: AC 400V
-
Insulation voltage: 1000V
-
Rated current: 125A – 800A
-
Breaking capacity: up to 65kA
-
Leakage current: 50–800mA adjustable
-
Reclosing time: 20–60s
Frequently Asked Questions (FAQ)
1. What makes this breaker different from a standard MCCB?
It combines leakage protection, smart monitoring, and auto reclosing, offering full-system protection.
2. What is the purpose of auto reclosing?
It restores power automatically after temporary faults, ensuring continuous operation without manual reset.
3. Can I adjust protection settings?
Yes. Current, delay time, and leakage thresholds are all configurable.
4. Is it suitable for industrial systems?
Yes. It is designed for industrial, commercial, and utility applications.
5. Does it support remote monitoring?
Yes. It supports remote control, monitoring, and parameter adjustment.
6. Can it prevent electrical fires?
Yes. Leakage detection helps prevent fires caused by insulation failure
7. What happens when a fault occurs?
The system:
-
Detects the fault
-
Trips the circuit
-
Records fault data
-
Automatically recloses (if enabled)
8. Is it easy to install and use?
Yes. It features a user-friendly interface and standard installation for switchgear systems.
Final Insight
This is not just a circuit breaker — it is a complete intelligent power protection solution.
It helps you:
-
Protect equipment
-
Prevent downtime
-
Reduce maintenance costs
-
Ensure system reliability
For modern electrical systems, this is no longer optional — it is essential.
