What Is Rated Current in a Circuit Breaker?

Understanding Rated Current (In)

Many beginners in electrical engineering assume that the rated current on a breaker or datasheet is straightforward. While the concept may seem simple, understanding the details can make a significant difference in design decisions, system reliability, and operational confidence.

Guangzhou EcoNewlink Technology Co., Ltd., founded in 2018 and located in Ping An Silicon Valley Science and Technology Park, is a dynamic subsidiary of CHTK Electronics Technology Co., Ltd. Leveraging over 15 years of industry heritage, we specialize in intelligent power distribution solutions, including molded case circuit breakers (MCCB), miniature circuit breakers (MCB), air circuit breakers (ACB), multifunction power meters, and current transformers. Our expertise in both manufacturing and custom OEM/ODM integration ensures that rated current specifications are precise, reliable, and tailored to your project requirements.

What is Rated Current (In)?

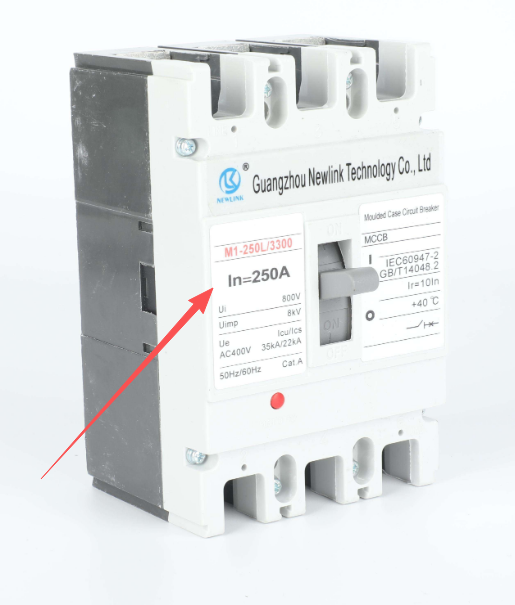

Rated current, commonly labeled as In on breaker nameplates and datasheets, represents the maximum continuous current a breaker can carry under normal operating conditions without tripping.

The term “continuous” is key — it is not a peak or fault current. Rated current defines the steady load a breaker can handle hour after hour while its thermal protection system remains inactive.

Breaking Down “In”:

• I stands for current.

• n comes from nominal, meaning “rated” or “named.”

• In is simply the nominal or rated current of the breaker.

Normal Conditions Include Temperature:
Manufacturers, including EcoNewlink, test breakers at a reference ambient temperature (typically 30°C or 40°C). If environmental temperatures exceed this reference, the actual current-carrying capacity decreases.

Rated current is the baseline for:

• Wire sizing

• Panel capacity planning

• Fuse and breaker coordination

Why Rated Current is Often Misunderstood

A common mistake is confusing rated current with tripping current. Rated current is the safe operating ceiling — a breaker will not trip at that value. Tripping begins only when current exceeds the rated value:

• Thermal overloads: Typically 135–150% of In sustained over time.

• Short circuits: Magnetic mechanism triggers almost instantaneously at much higher multiples.

Understanding this distinction is crucial for engineers, designers, and technicians working on panel design, commissioning, or troubleshooting.

Standard Rated Current Values by Breaker Type

Rated currents are standardized to simplify equipment selection and scaling.

IEC Standards and Renard Series

IEC 60898-1 defines preferred rated currents for low-voltage circuit breakers in residential and light commercial installations. Typical values include:
1A, 2A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A, 80A, 100A, 125A.

These follow the Renard series, a mathematical progression with roughly equal ratios, making it easier to scale up or down without selecting unnecessarily large breakers.

Residential MCB Applications:

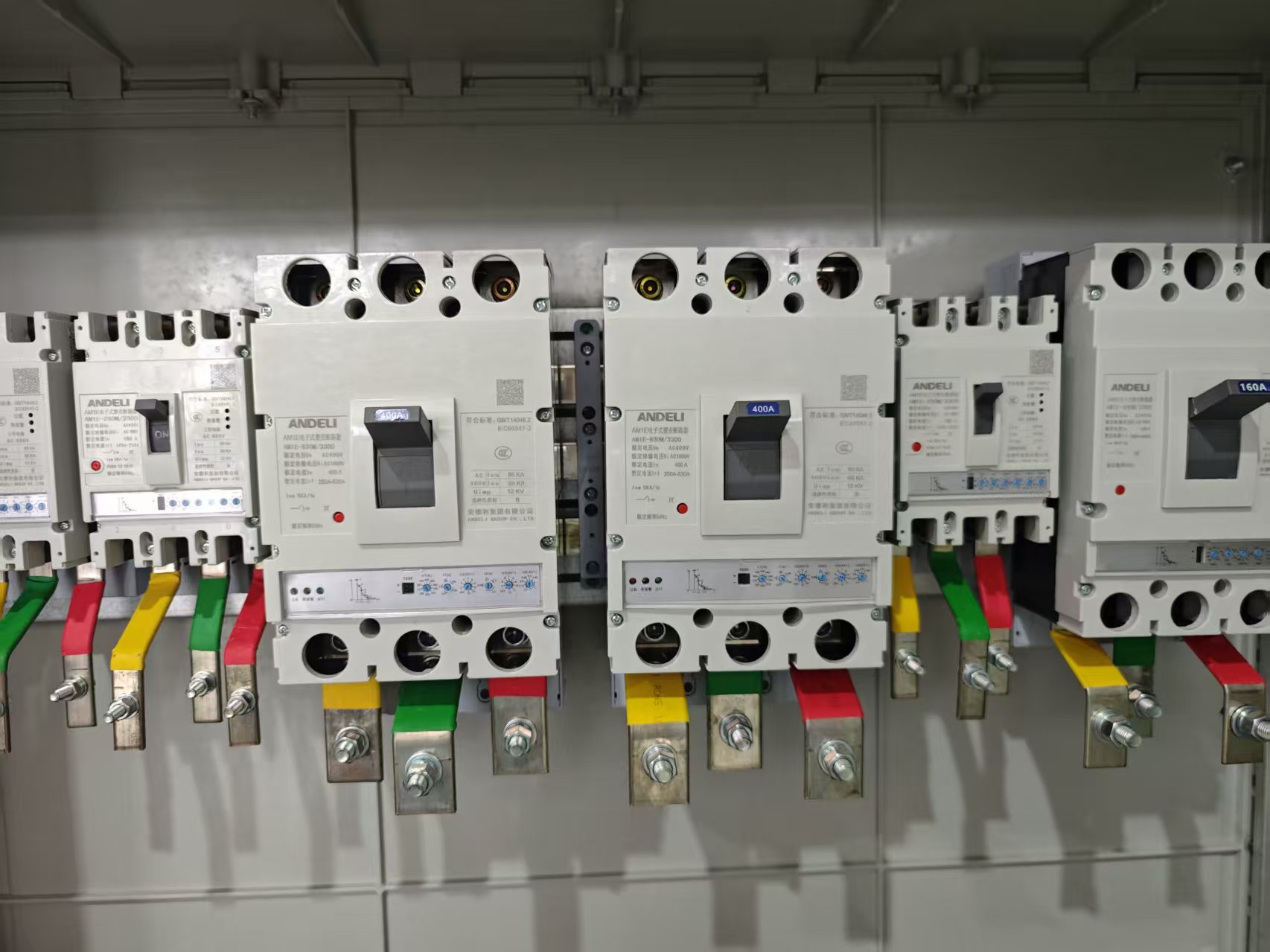

Breaker Type and Rated Current Ranges

• MCBs: Common in residential/light commercial panels.

• MCCBs: Used for heavy commercial/industrial loads.

• ACBs: Designed for large-scale power distribution with high fault currents.

EcoNewlink Practice: On our production lines, manufacturing MCBs and MCCBs involves distinct processes, components, and testing procedures. For example, a 6A MCB and a 1600A MCCB have rated currents, but are designed for completely different environments. Our global clients trust us to deliver accurate, reliable ratings across all product categories.

Conclusion

Rated current is more than a number on a datasheet — it is a critical guideline for safe, reliable, and efficient electrical system design. By understanding how rated current interacts with environmental conditions, breaker type, and application requirements, engineers and installers can reduce unexpected trips, optimize panel design, and improve operational confidence.

At Guangzhou EcoNewlink Technology, we combine precision-rated breakers with intelligent power management solutions to deliver safe, cost-effective, and fully integrated distribution systems worldwide.

FAQ

Q1: What does In stand for on a circuit breaker?
A1: In stands for the nominal (rated) current, which is the maximum continuous current the breaker can carry without tripping.

Q2: Does ambient temperature affect rated current?
A2: Yes. Rated current is specified at a reference temperature. Higher ambient temperatures reduce the actual current-carrying capacity.

Q3: Can rated current be confused with tripping current?
A3: Yes, but they are different. Rated current is the safe continuous current, while tripping current occurs above In, depending on thermal or magnetic mechanisms.

Q4: What rated current range do MCBs cover?
A4: Typically 0.5A to 125A for residential and light commercial applications.

Q5: What about industrial MCCBs and ACBs?
A5: MCCBs can go up to 2,500A; ACBs are for very high industrial loads starting around 800A.

Q6: How does EcoNewlink ensure rated current accuracy?
A6: With 5 automated production lines, strict 5S management, global certifications, and rigorous testing procedures, we maintain exceptional precision across all breaker types.
