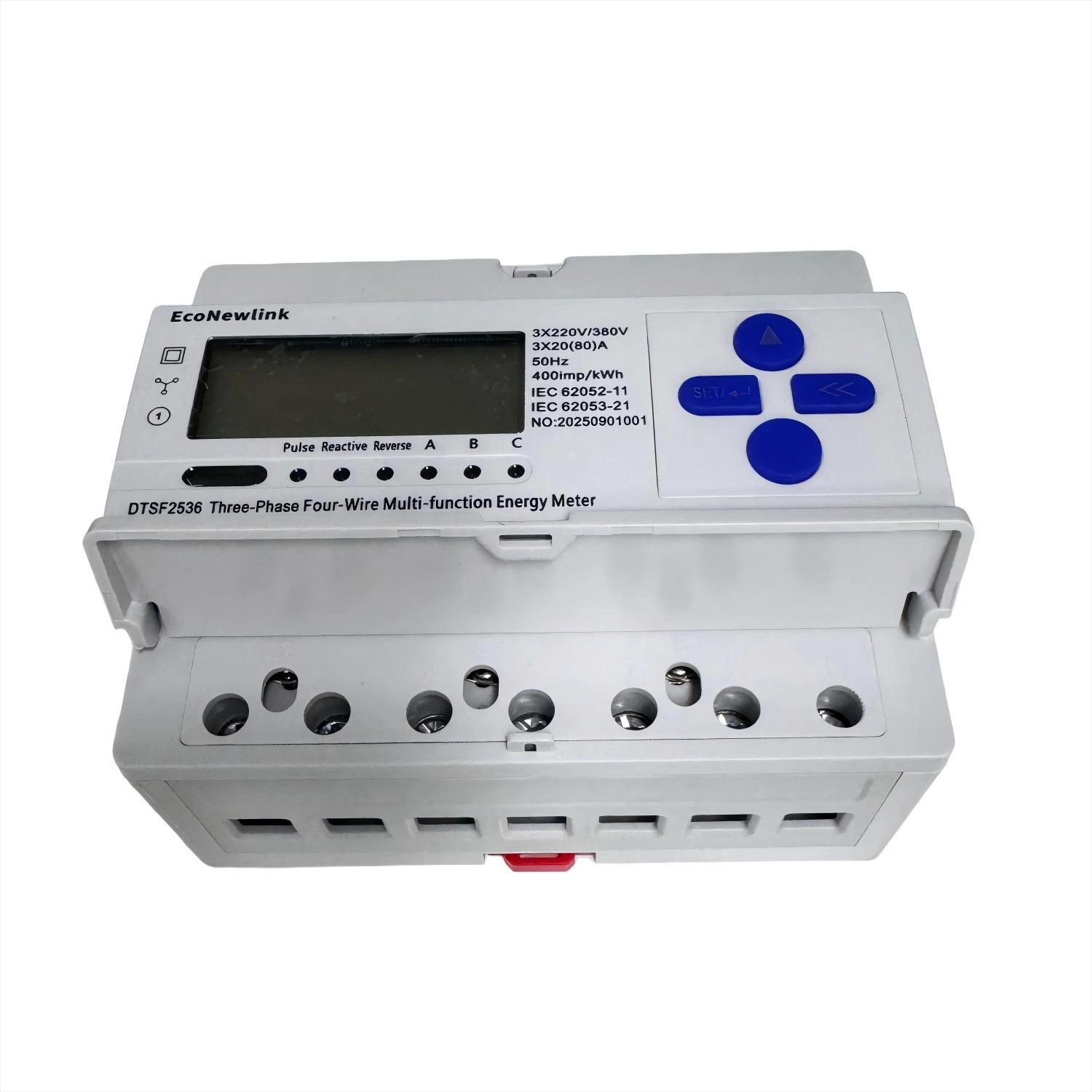

EcoNewlink Three Phase anti backflow energy meter RS485 Modbus DINRail Zero Export for PV Inverter
This three-phase anti-backflow energy meter is designed for solar PV systems to prevent excess electricity from feeding back into the grid. With RS485 Modbus communication, it provides real-time data to the inverter for dynamic power control, helping maximize self-consumption and ensure compliance with grid regulations. Ideal for residential, commercial, and rental energy management systems.
Accurate Power Monitoring
Equipped with high-precision measurement, ensuring reliable detection of import and export power for effective inverter control.
Zero Export Function
Works with solar inverters to limit output automatically, preventing reverse power flow to the grid.
RS485 Communication Interface
Standard Modbus-RTU protocol enables seamless integration with various inverter brands and energy management systems.
Multi-Function Display
Provides real-time data including voltage, current, active power, reactive power, frequency, and energy consumption.

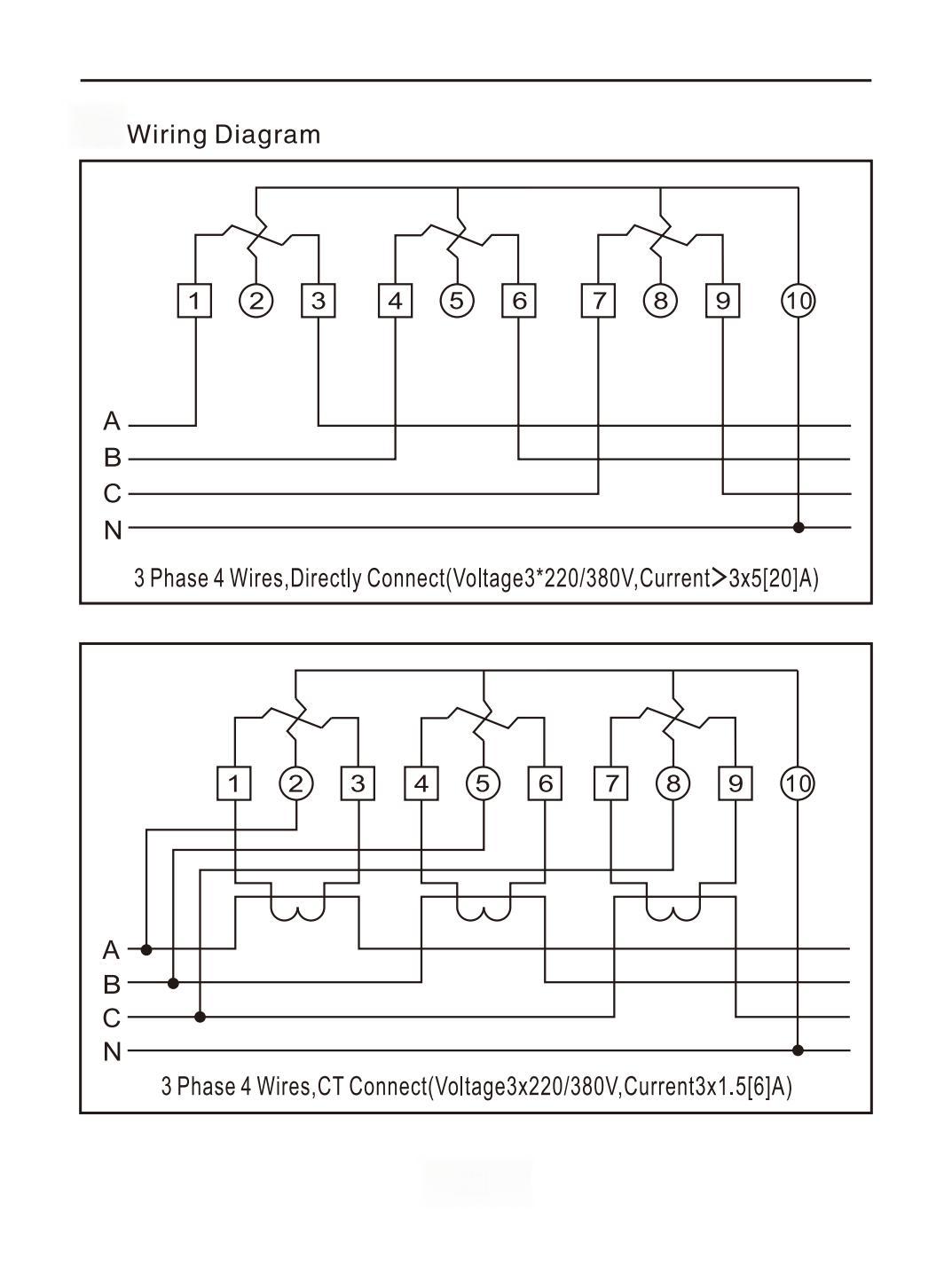

Three-Phase Four-Wire System
Suitable for 3×220/380V systems, widely used in commercial and industrial applications.
DIN Rail Mounting Design
Compact structure for easy installation in distribution boxes and electrical panels.
Wide Application Range
Ideal for solar systems, rental housing, factories, office buildings, and grid-restricted areas.
| Project | Technica|indicators | |
| Precision level | Active power:0.5level,1.0 level Reactive power:2.0 level |
|
| Rated voltage | 3×220/380V,3×57.7/100V.3×100V,3×380 | |
| Current specifications | 1.5(6)A、5(60)A、10(100)A | |
| Operating voltage | Normal operating voltage range:0.9~1.1Un Ultimate operating voltage range:0.7~1.2Un |
|
| Reference frequency | 50Hz or60Hz | |
| Starting current |
Direct connection |
0.0041b |
| Access via current transformer |
0.002In | |
| Power consumption |
Voltage lines | ≤5VA/phase |
| Current lines | <4VA/phase | |
| Pulse output | Pulse width:80ms±20ms;Optical isolation, Collector open-drain output |
|
| Communication interface | RS485.MODBUS-RTU(Other communication protocols can be customized),Two RS485 interfaces can be expanded |
|
| Clock error | s0.5s/d | |
| Temperature range | Normal operating temperature:-10℃-+45℃; Ultimate operating temperature:-20℃-+55℃; Storage temperature:-40℃-+70℃ |
|
| Relative humidity | ≤95%(No condensation) | |

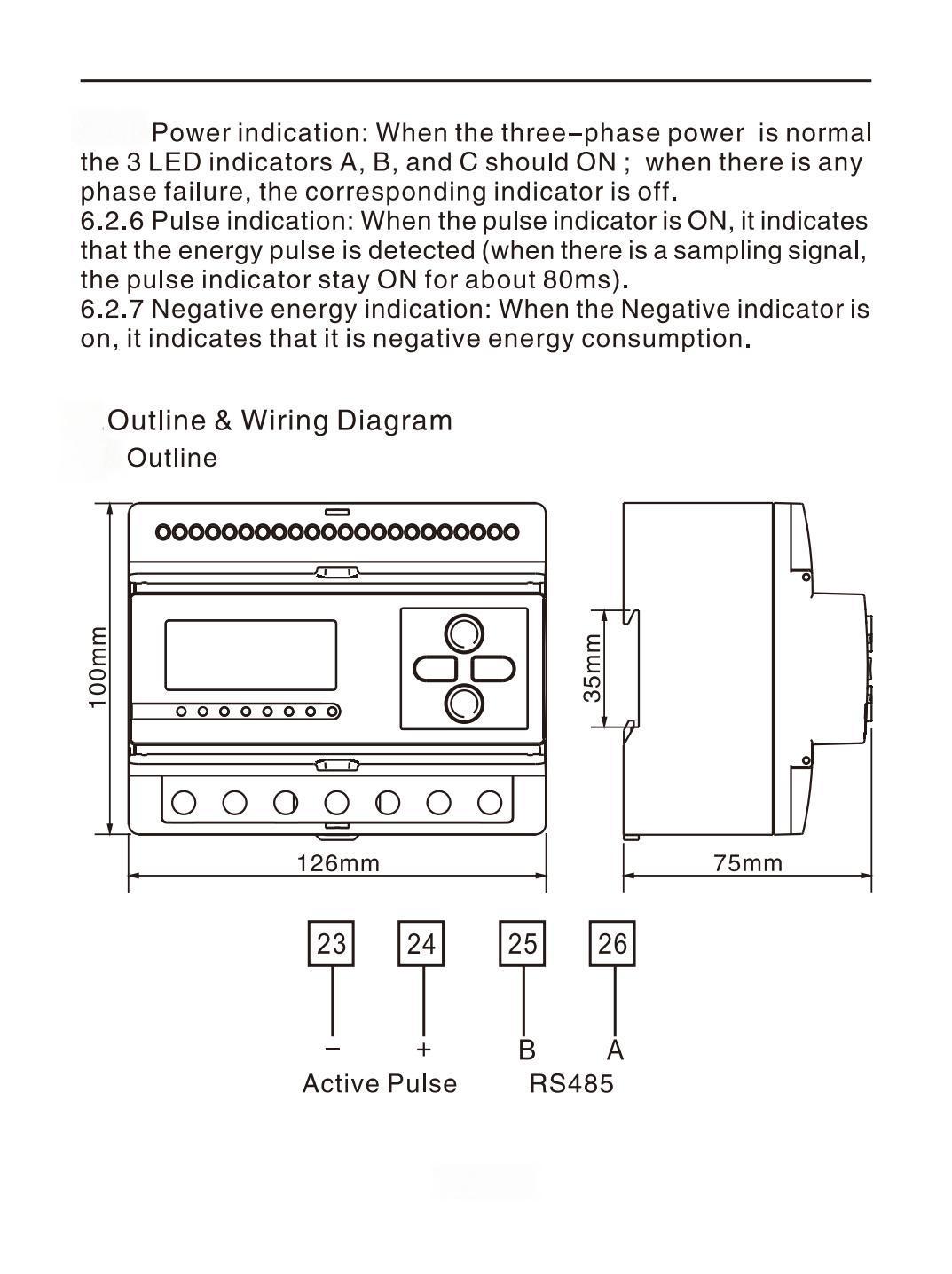

| Dimensions(L×W×H) | Rail-mounted:126×91×74mm; Wall-mounted:256×170×85mm |
|
| Mean trouble-free operating time(h) |
≥50000 | |
OEM & ODM Services
We offer complete OEM & ODM services:

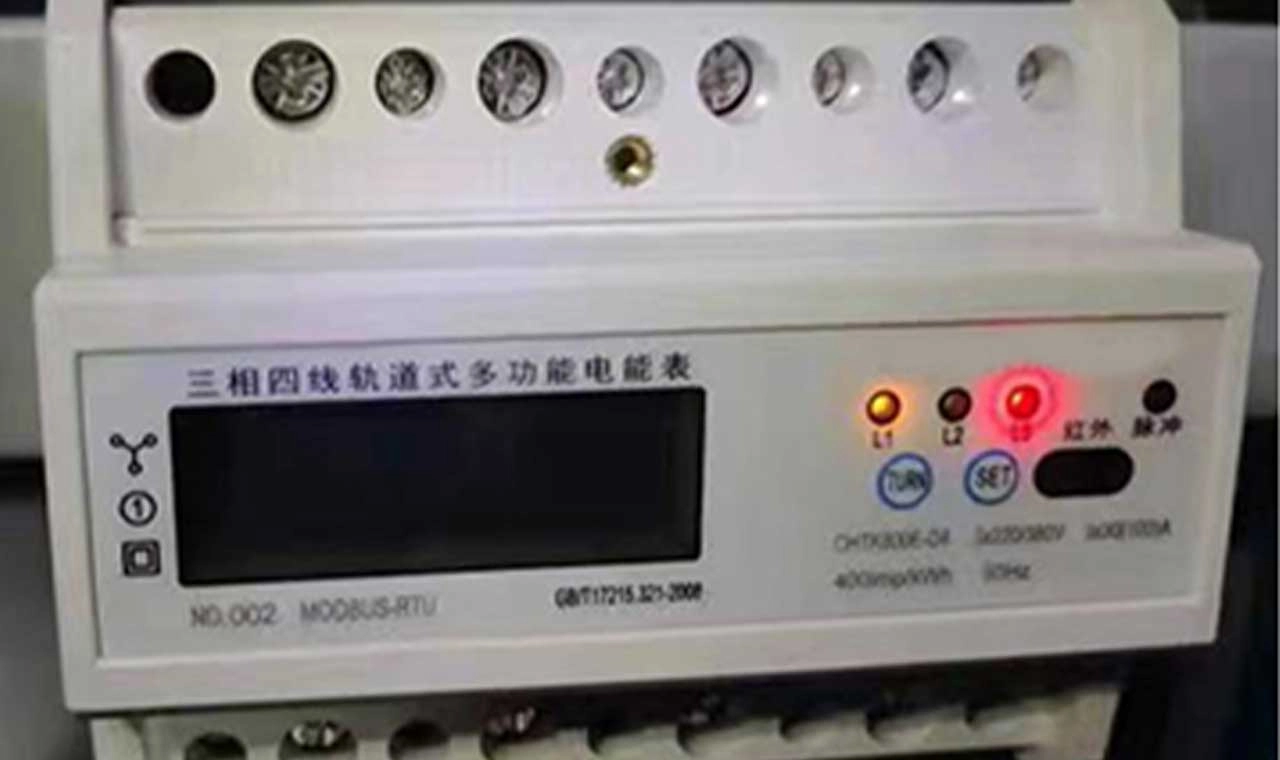

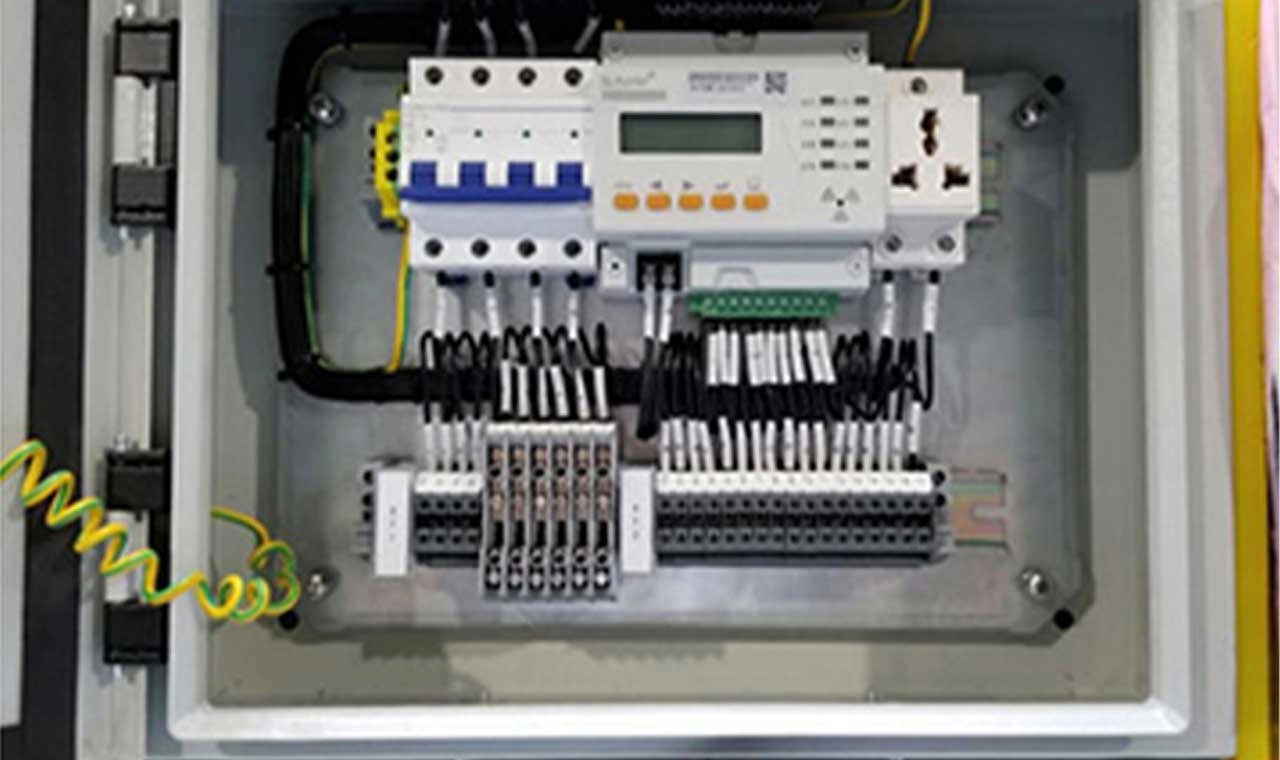

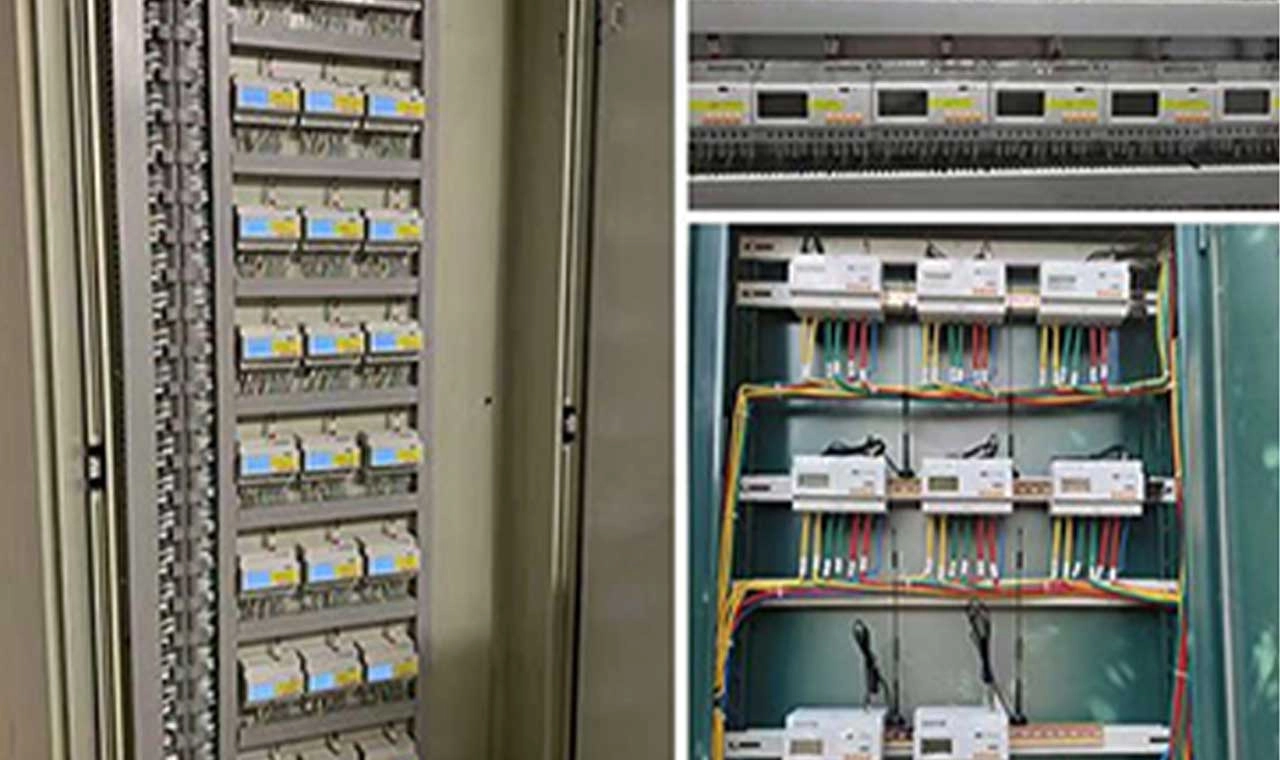

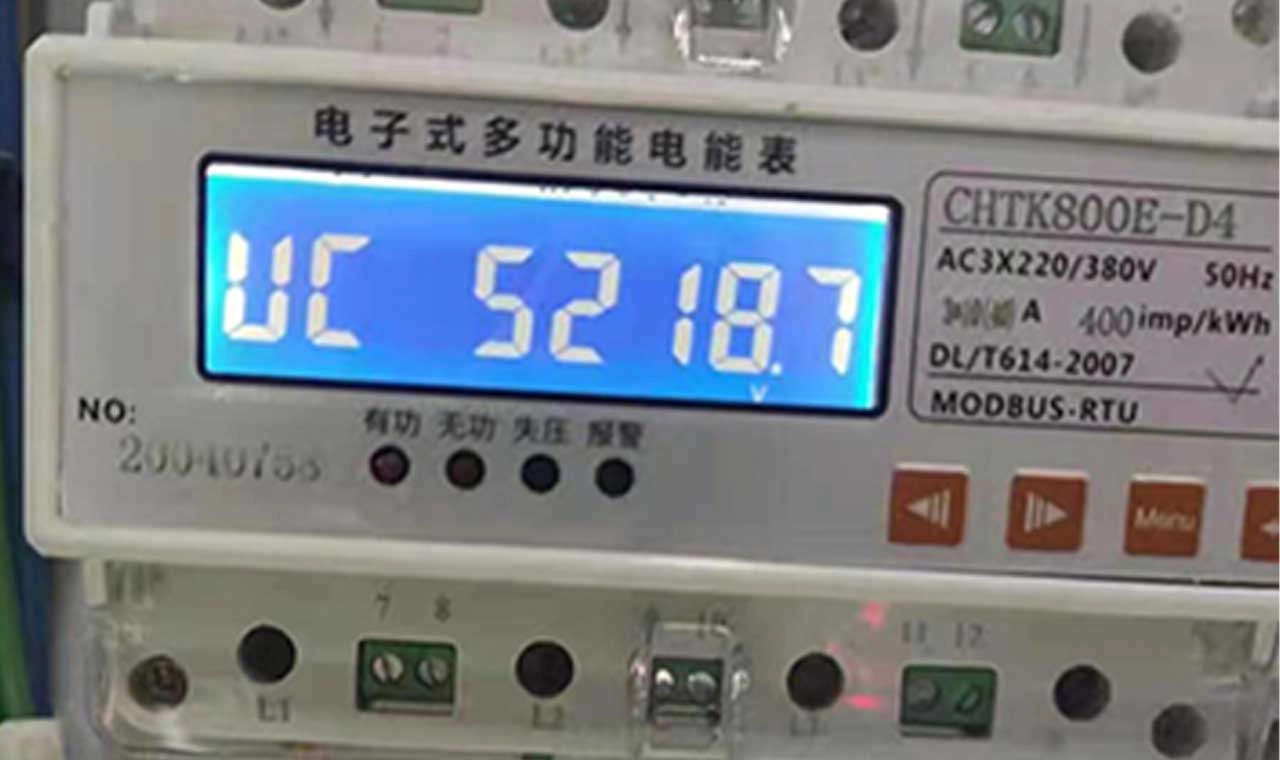

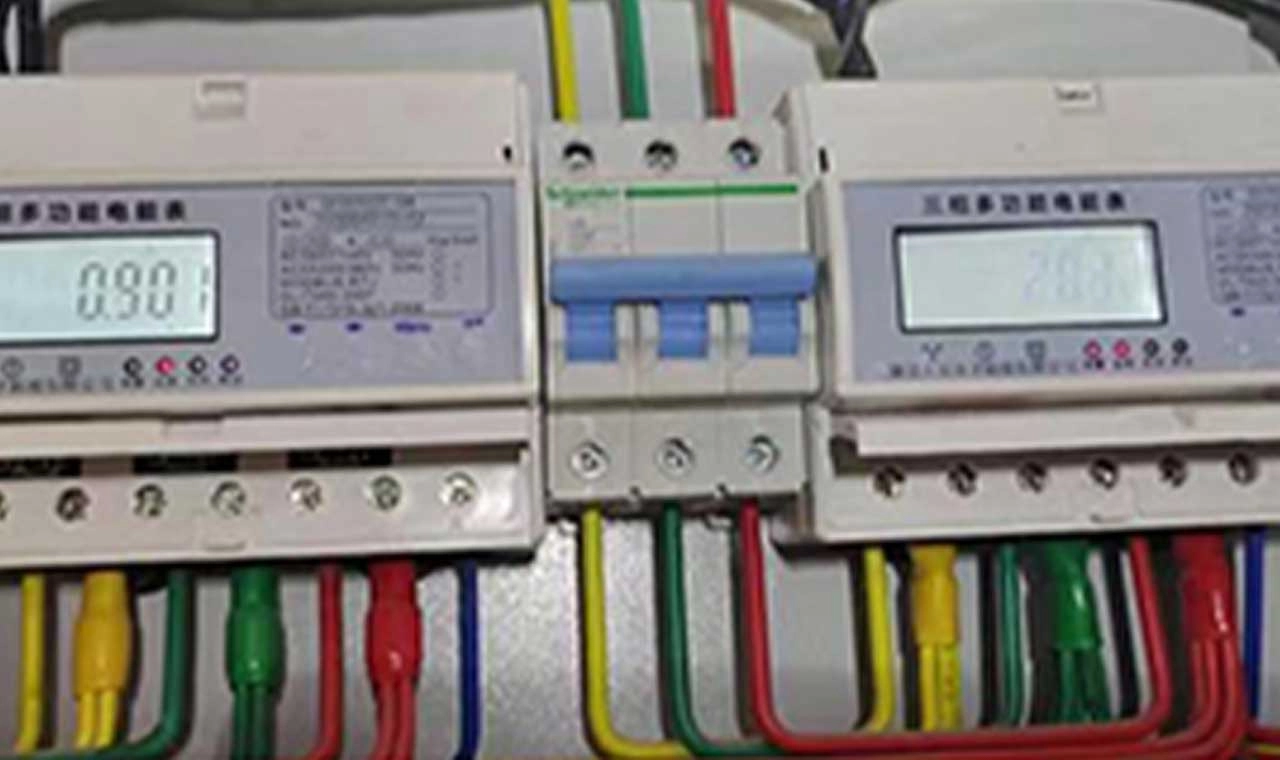

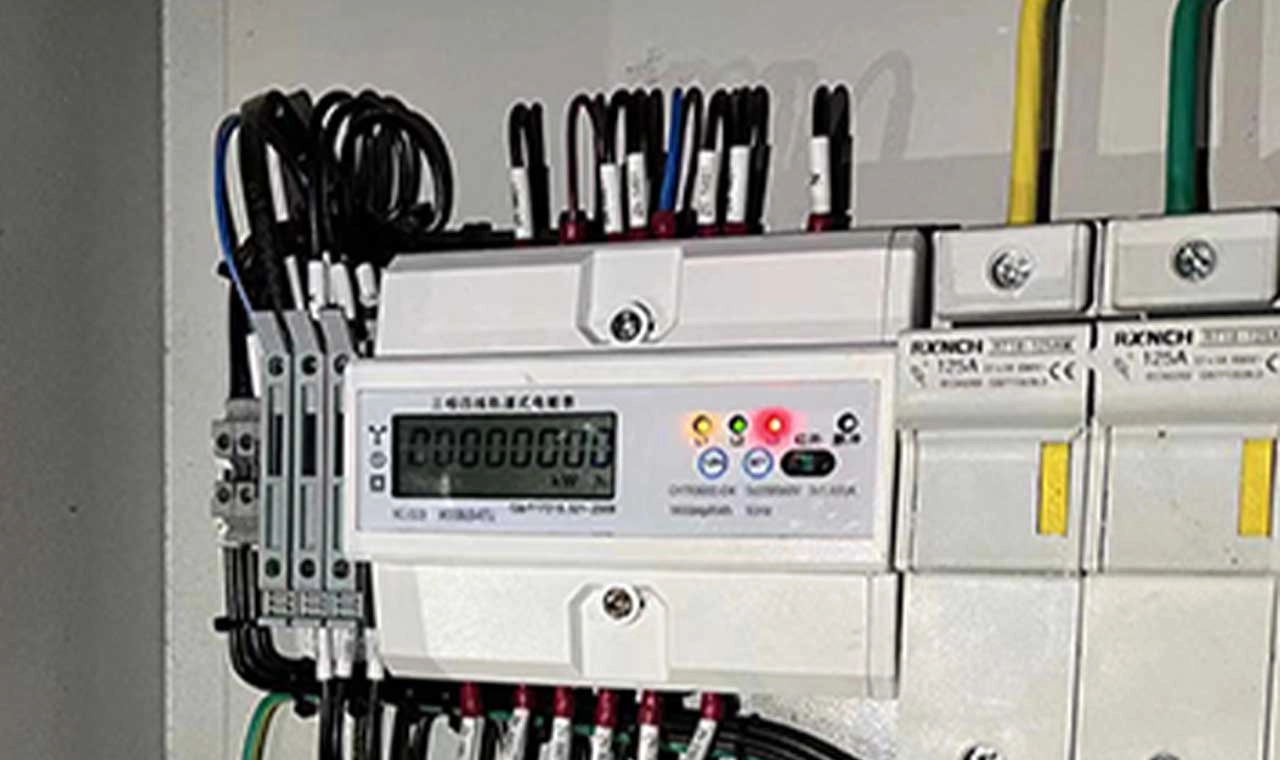

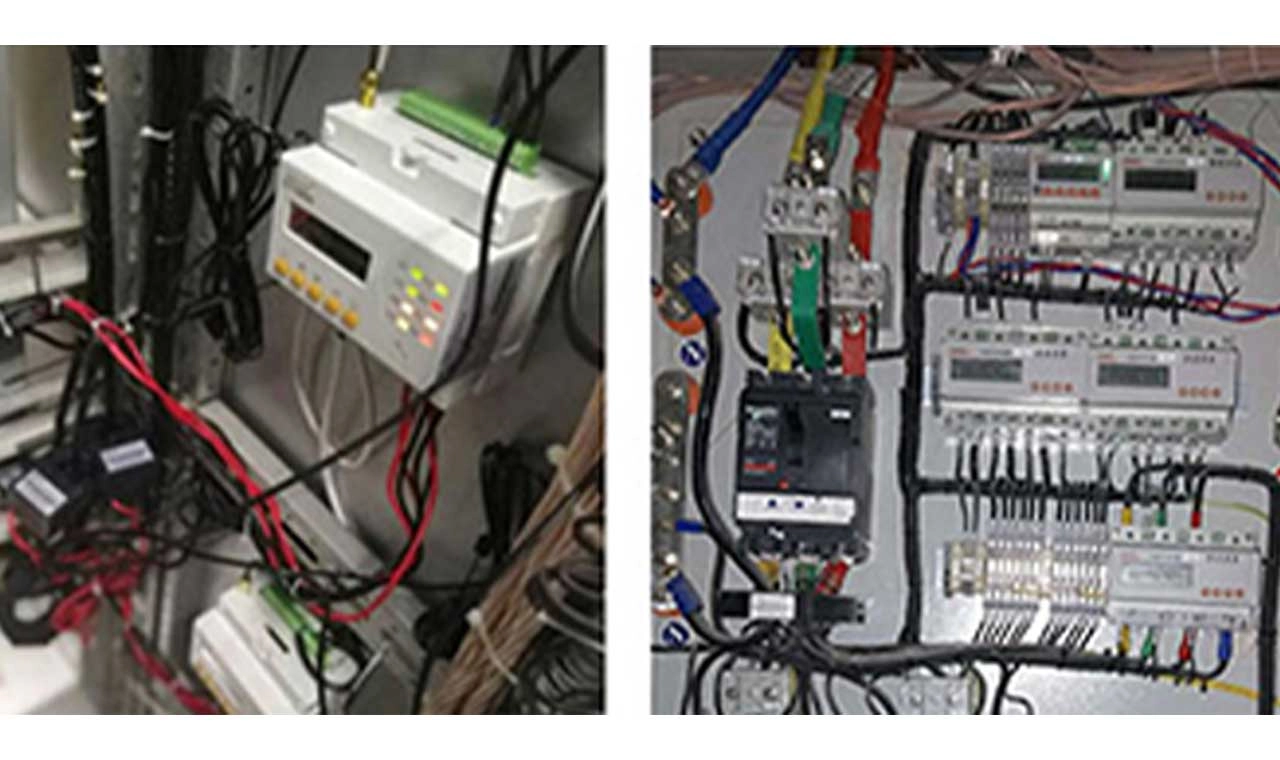

Application
Why Choose EcoNewlink
Shipping & Delivery
After-Sales & Support
FAQs
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
Three Phase anti backflow energy meter
Why is energy saving sometimes limited？
This may be due to low daytime load no battery storage or incorrect installation.
Can it be used in rental properties？
Yes it is widely used for landlords to control and optimize energy usage.
Does this meter save electricity directly？
No it helps optimize solar usage but does not generate extra power.
What happens if CT direction is wrong？
The system may detect power incorrectly and reduce inverter efficiency.
Is it compatible with all inverters？
It supports most inverters with RS485 Modbus protocol but compatibility should be confirmed.
Can it work without CT？
Yes for small current systems direct connection is possible, larger systems require CT.
Where should the meter be installed？
It must be installed at the main grid connection point to measure total power flow.
What is the main function of this meter
It measures real-time power flow and works with the inverter to prevent electricity from feeding back into the grid.
You May Also Like
Single Phase Digital Ammeter with RS485 Modbus | LED LCD Panel Current Meter for Industrial Power Monitoring
High-precision single phase digital ammeter with RS485 Modbus communication, LED/LCD display, and programmable CT ratio. Ideal for power systems, automation equipment, and industrial monitoring applications.
Tuya WiFi Smart Recloser 63A Single Phase kWh Meter with Timer, Earth Leakage, Over/Under Voltage and Overcurrent Protection
This Tuya WiFi smart recloser combines energy metering, timer control and multiple electrical protections in one compact device. It supports remote monitoring through the Smart Life or Tuya app, allowing users to check power data, set schedules and manage circuits conveniently. Designed for single-phase systems, it helps improve electrical safety and energy management in residential, commercial and light industrial applications.
STE18-RF Prepaid IC Card Energy Meter – STS Compliant RF Smart Electricity Meter for Secure Prepaid Power Management and Vending System Integration
The STE18-RF Prepaid IC Card Electricity Meter is an STS-compliant smart energy meter designed for secure and efficient prepaid power management. Using reliable RF IC card communication, the meter enables accurate electricity data storage, token-based credit management, and seamless integration with vending systems or handheld units. Its modular plug-and-play architecture supports flexible smart metering deployment while ensuring stable performance, tamper protection, and offline operation without continuous network connectivity.

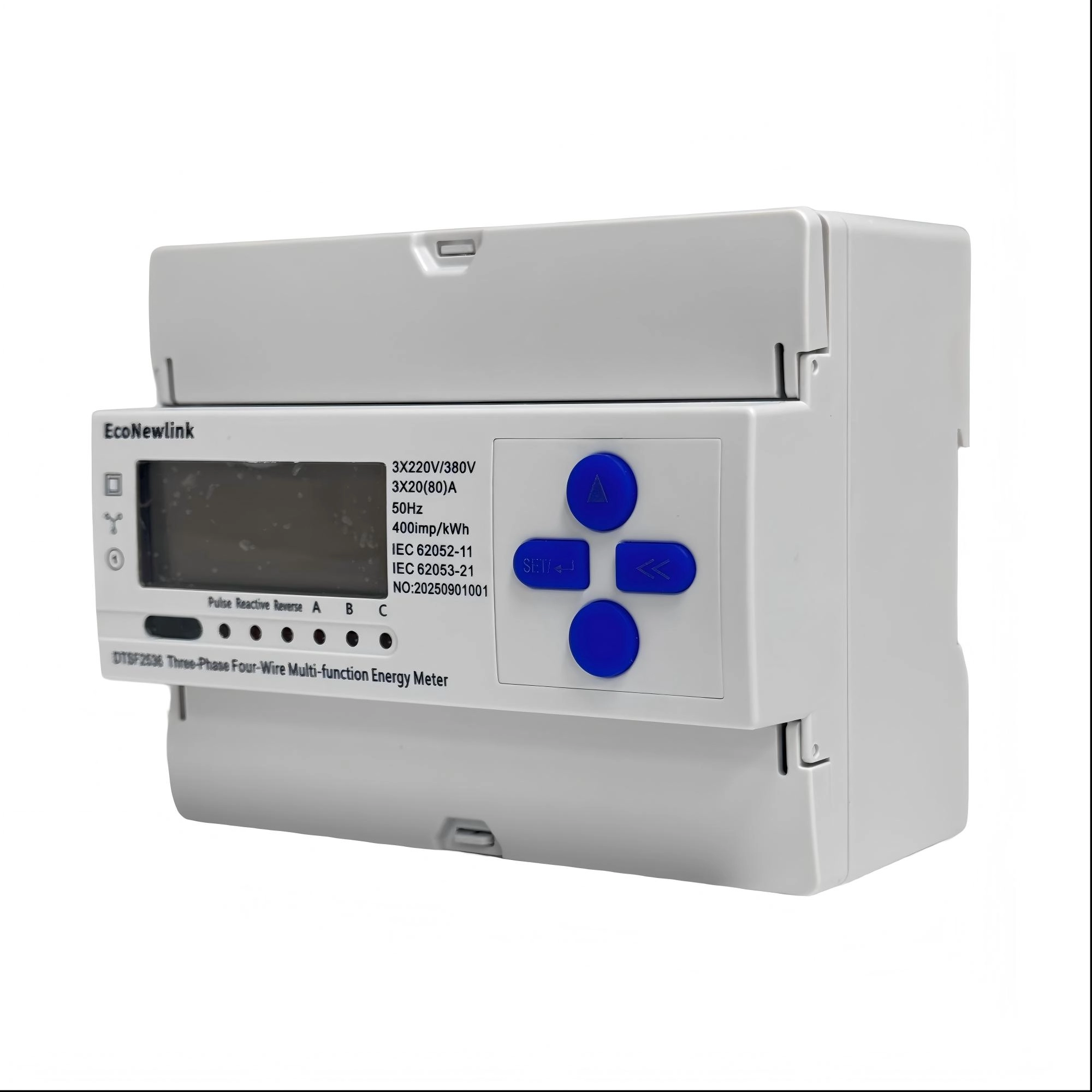

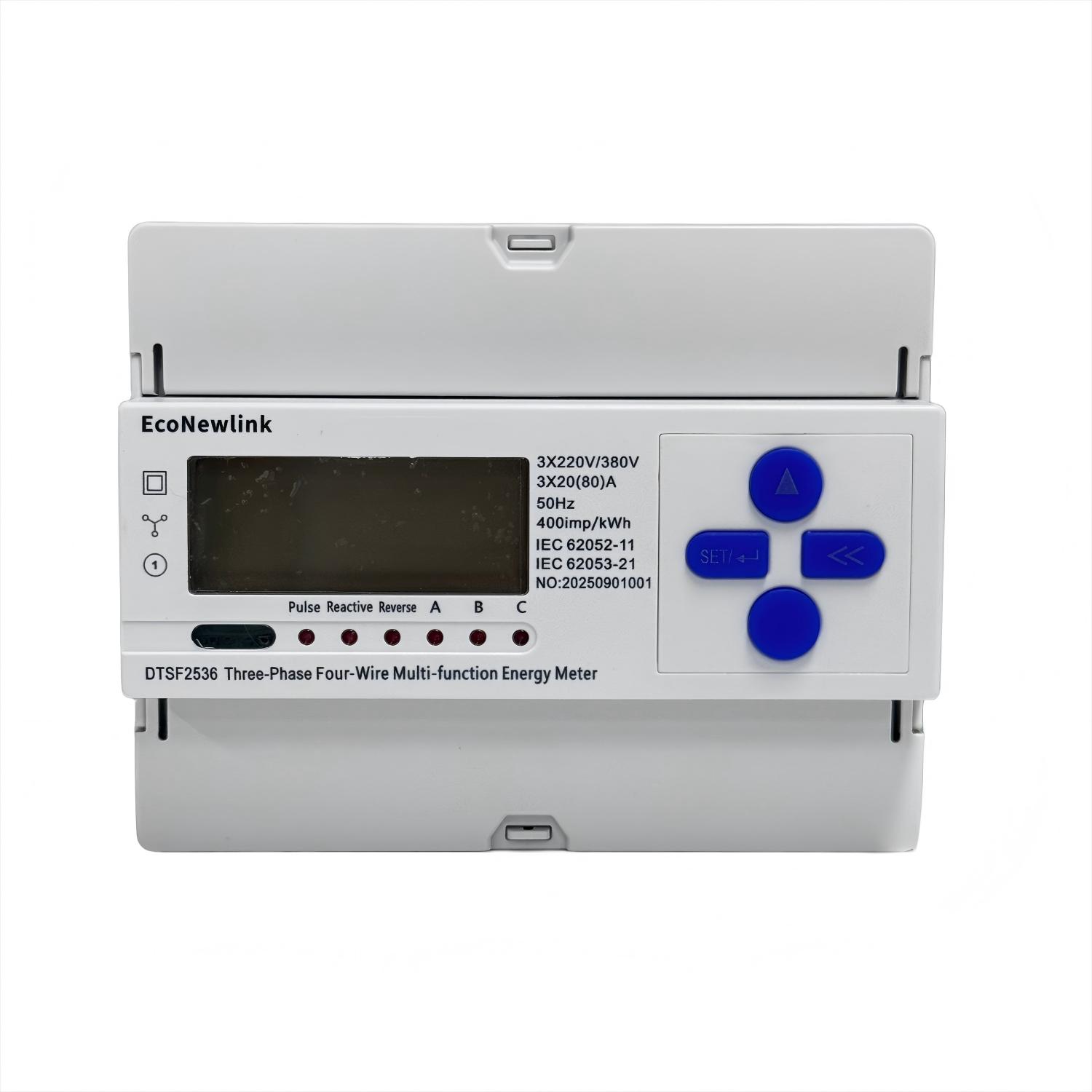

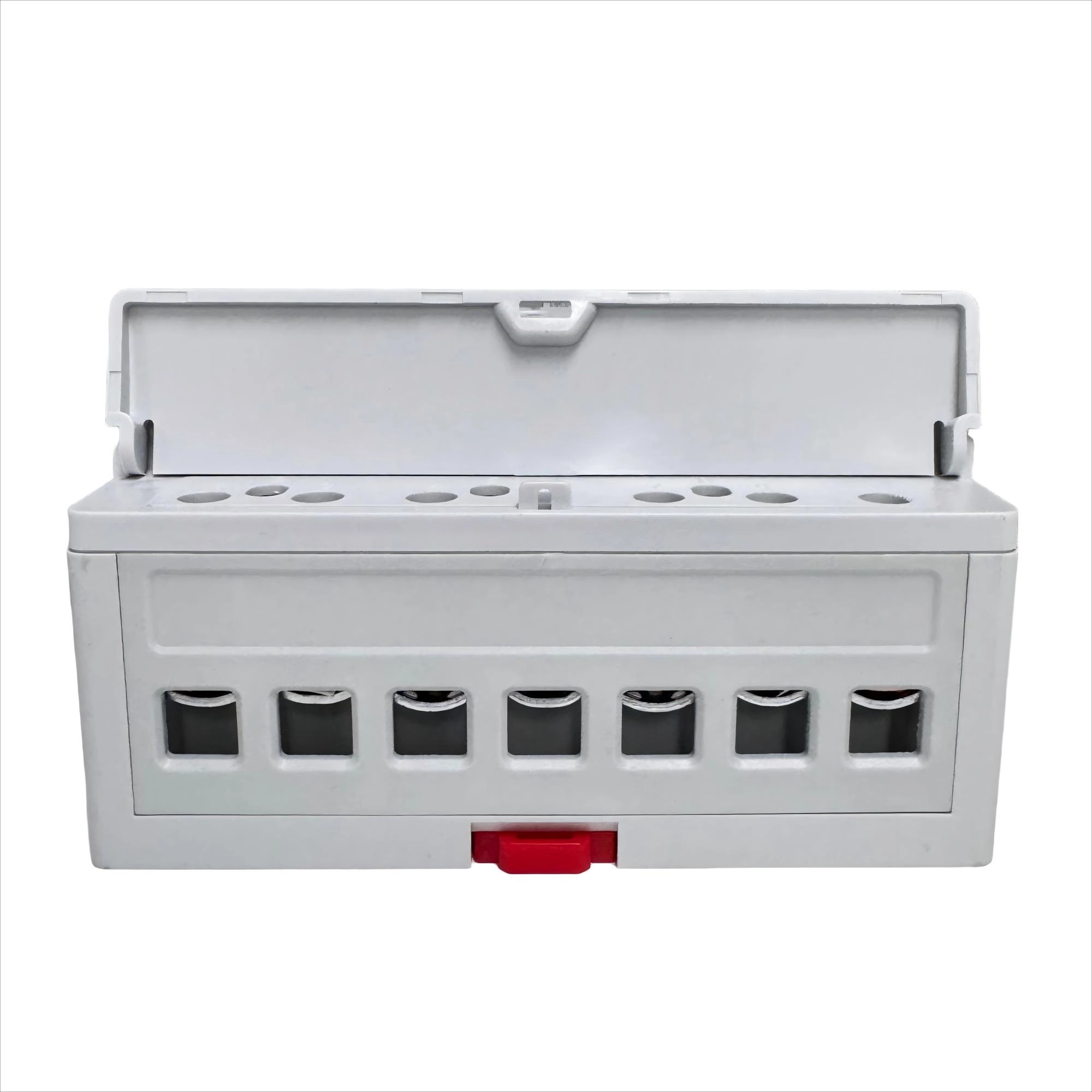

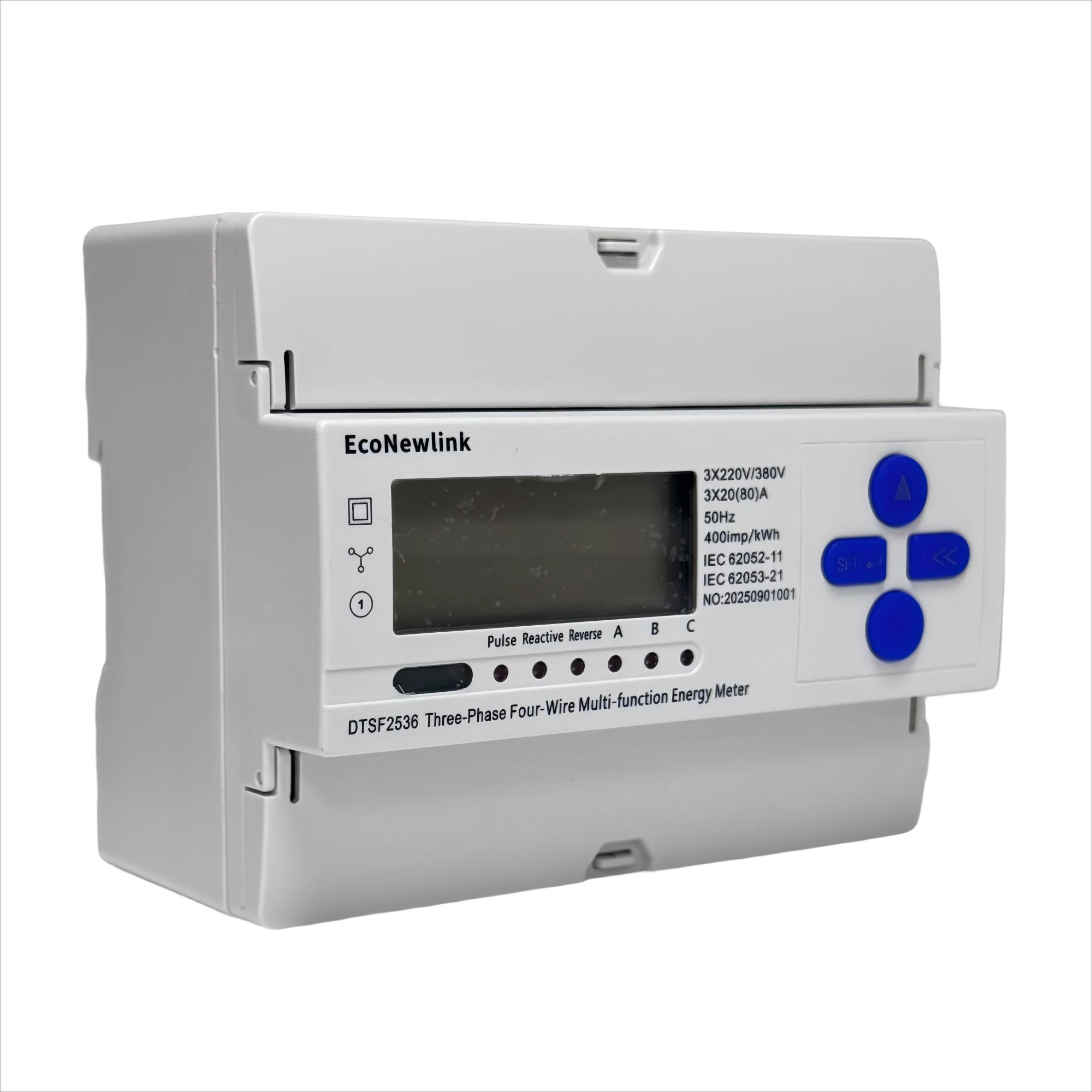

Three-Phase Four-Wire Multifunction Electronic DIN Rail Energy Meter Manufacturer with CE Certification
