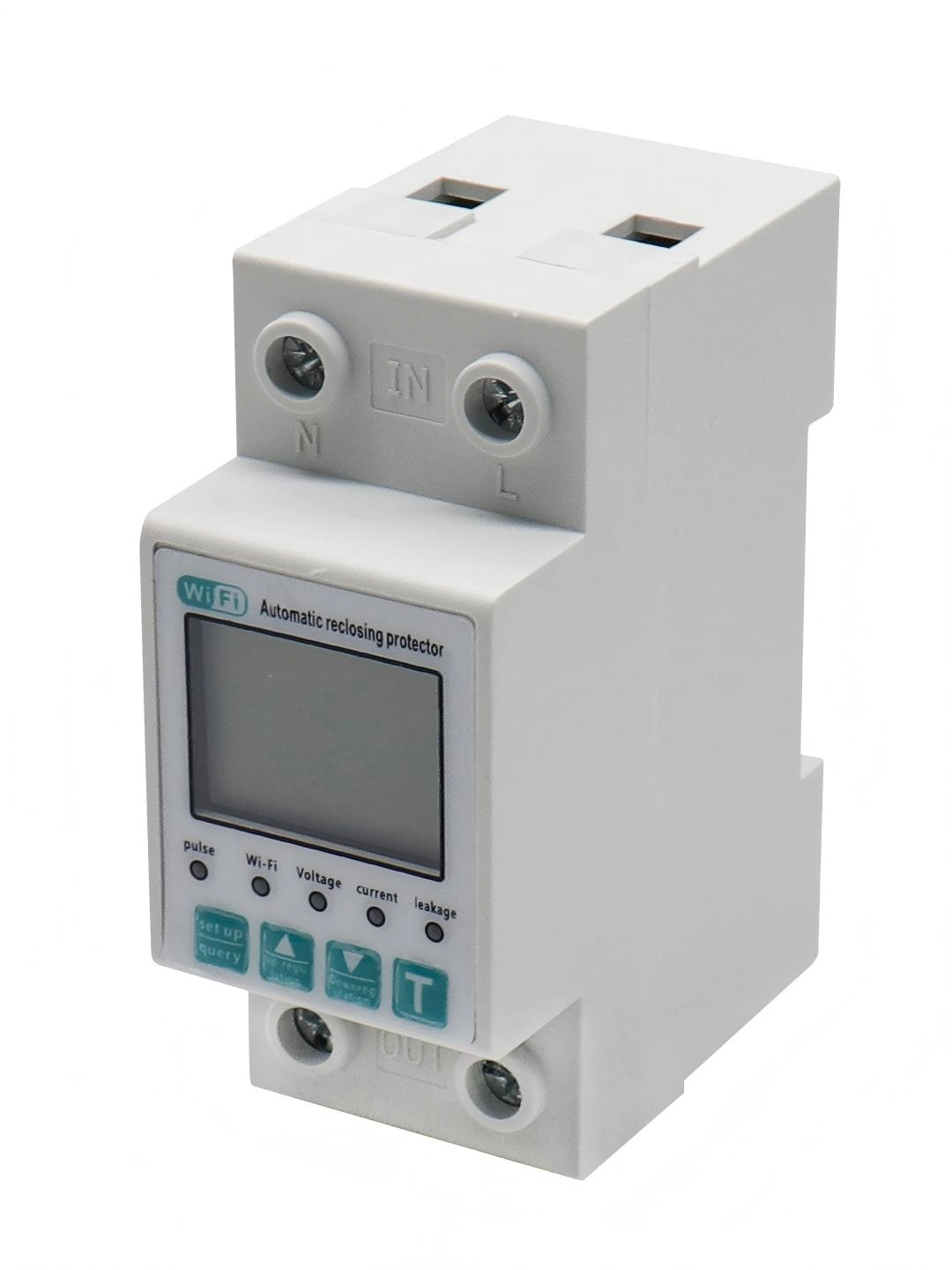

Tuya WiFi Smart Recloser 63A Single Phase kWh Meter with Timer, Earth Leakage, Over/Under Voltage and Overcurrent Protection

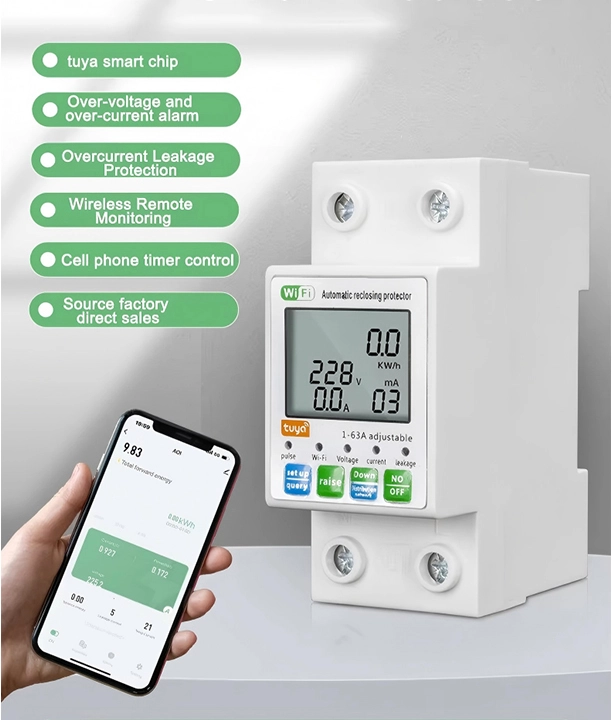

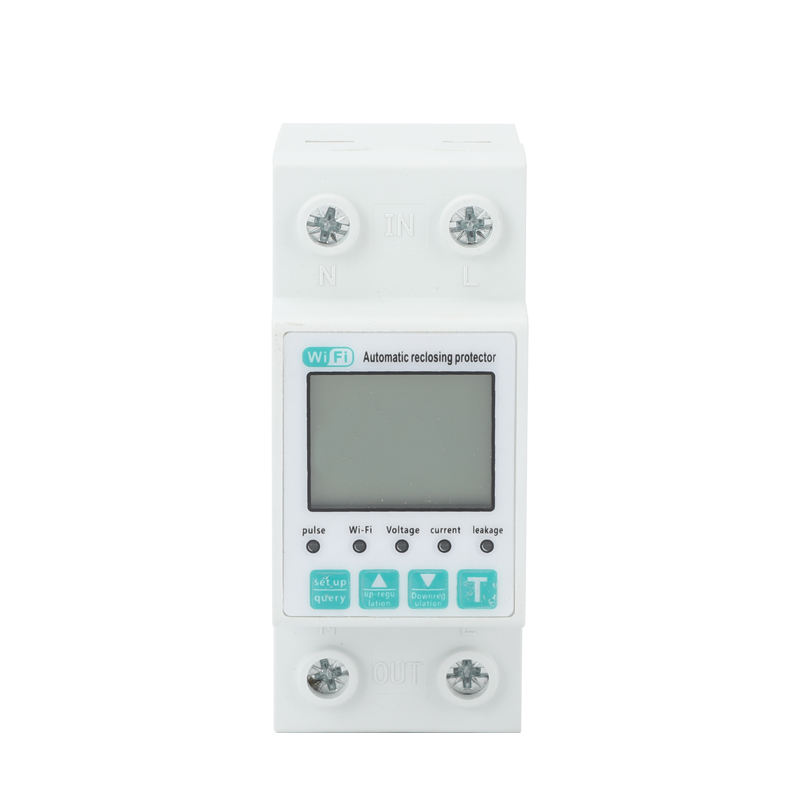

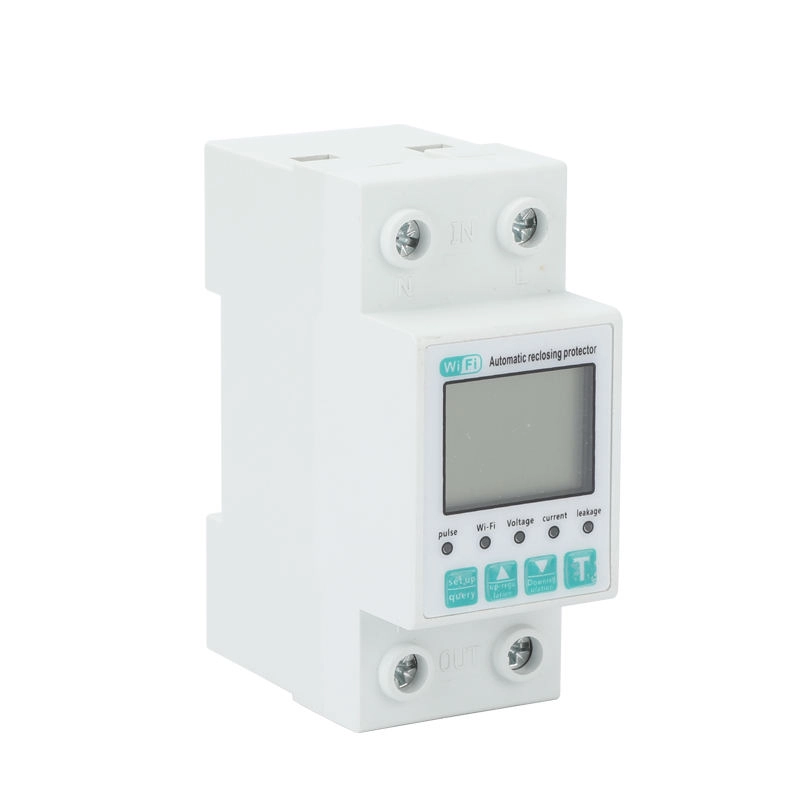

This Tuya WiFi smart recloser combines energy metering, timer control and multiple electrical protections in one compact device. It supports remote monitoring through the Smart Life or Tuya app, allowing users to check power data, set schedules and manage circuits conveniently. Designed for single-phase systems, it helps improve electrical safety and energy management in residential, commercial and light industrial applications.
6 Advantages
| Specification | Details |
|---|---|
| Network | Tuya Smart |
| APP share | Nnumber of people |
| Install | 35MM guide rail |
| Protection level | Ip20 |
| Pollution level | 3 |
| Altitude | <2000m |
| U and & lt;U trip delays | 0.5s |
| reset/start delay | 10s-99s |
| Voltage measurement accuracy | 1%(notexceeding 1%ofthe total range) |
| Rated insulation voltage | 400v |
| Output contact | 1 NO |
| Phase | Single Phase |
| Operating voltage | AC80V-300V(single phase) |
| Output Voltage | AC110/230V |
| Rated Current | 5 A |
| Measuring Energy Range | 99999.9 |
| Frequency | 50/60Hz |

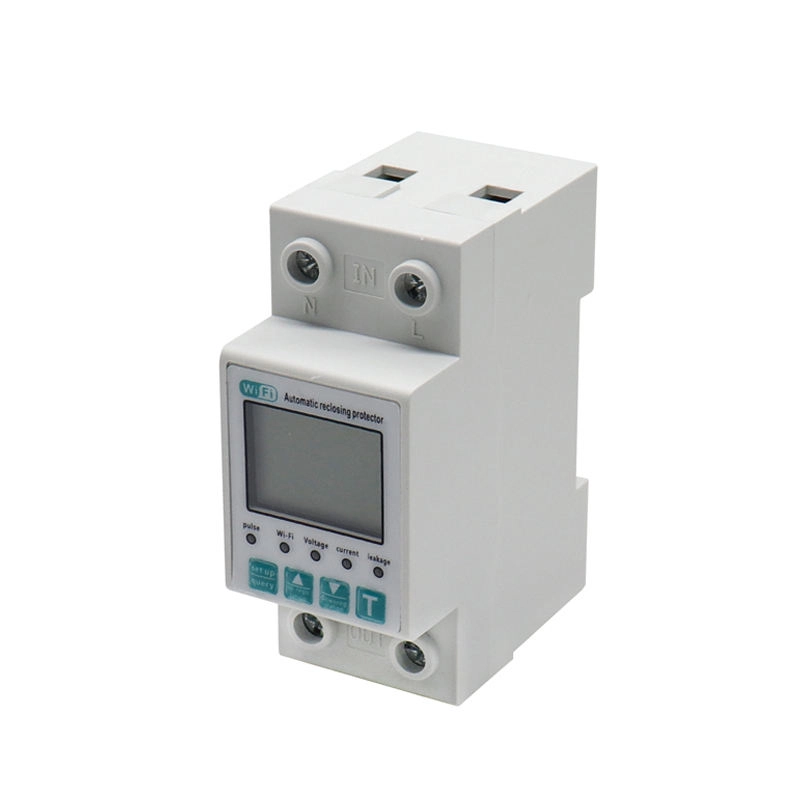

| Display Type | Lcd |
| Feature | WIFI/Over/under voltage/Leakage Protect |
| Model Number | DDS |
| Color | White |
| Workinghumidity | ≤50% at 40℃ (no condensation) |
| Synchronizationtime between data and device | Upto20seconds(dependson networkspeed) |
| Working Temperature | -20℃ ~ +70℃ |

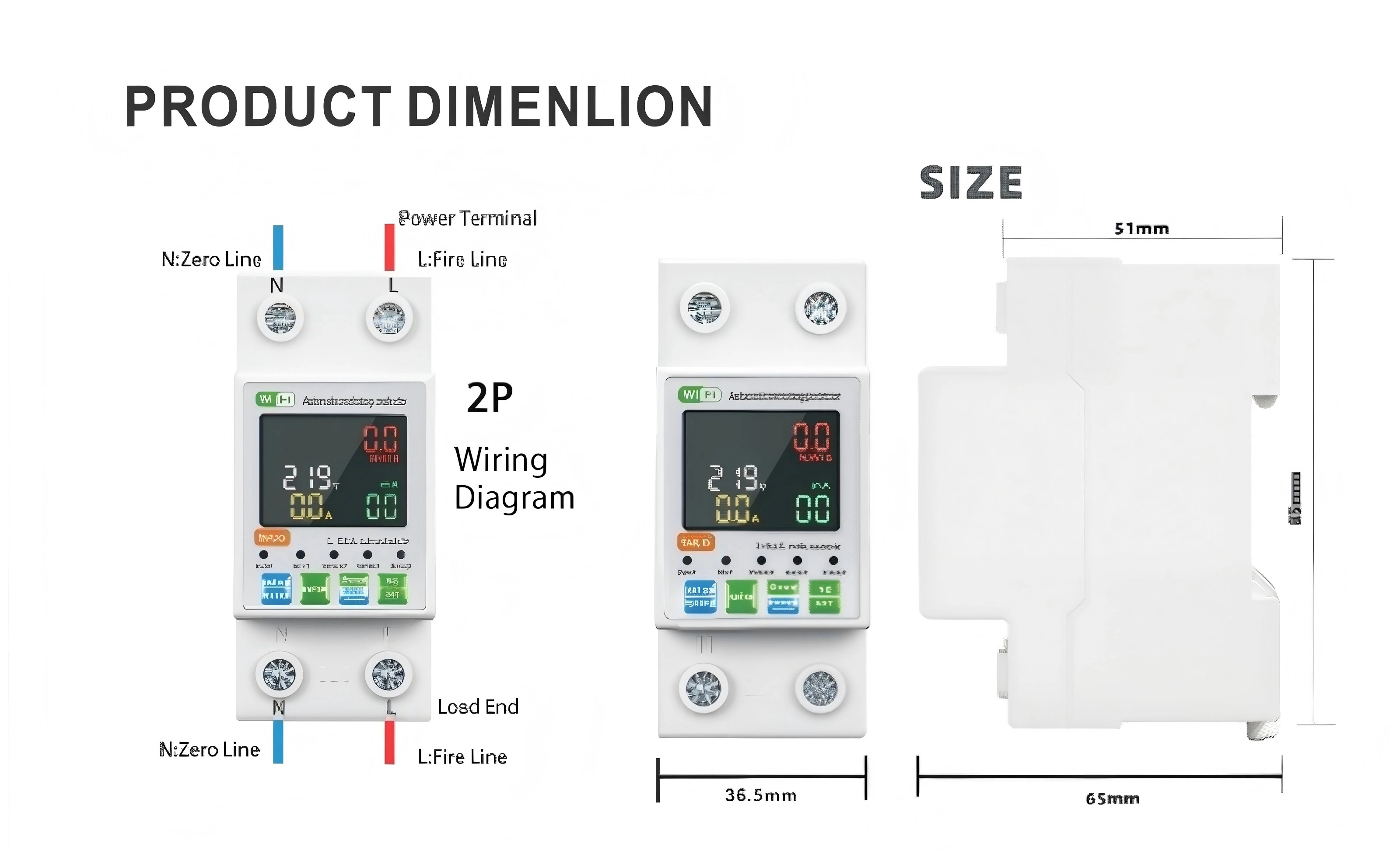

| Size | 92*70*65mm |
| Packaging | Carton |

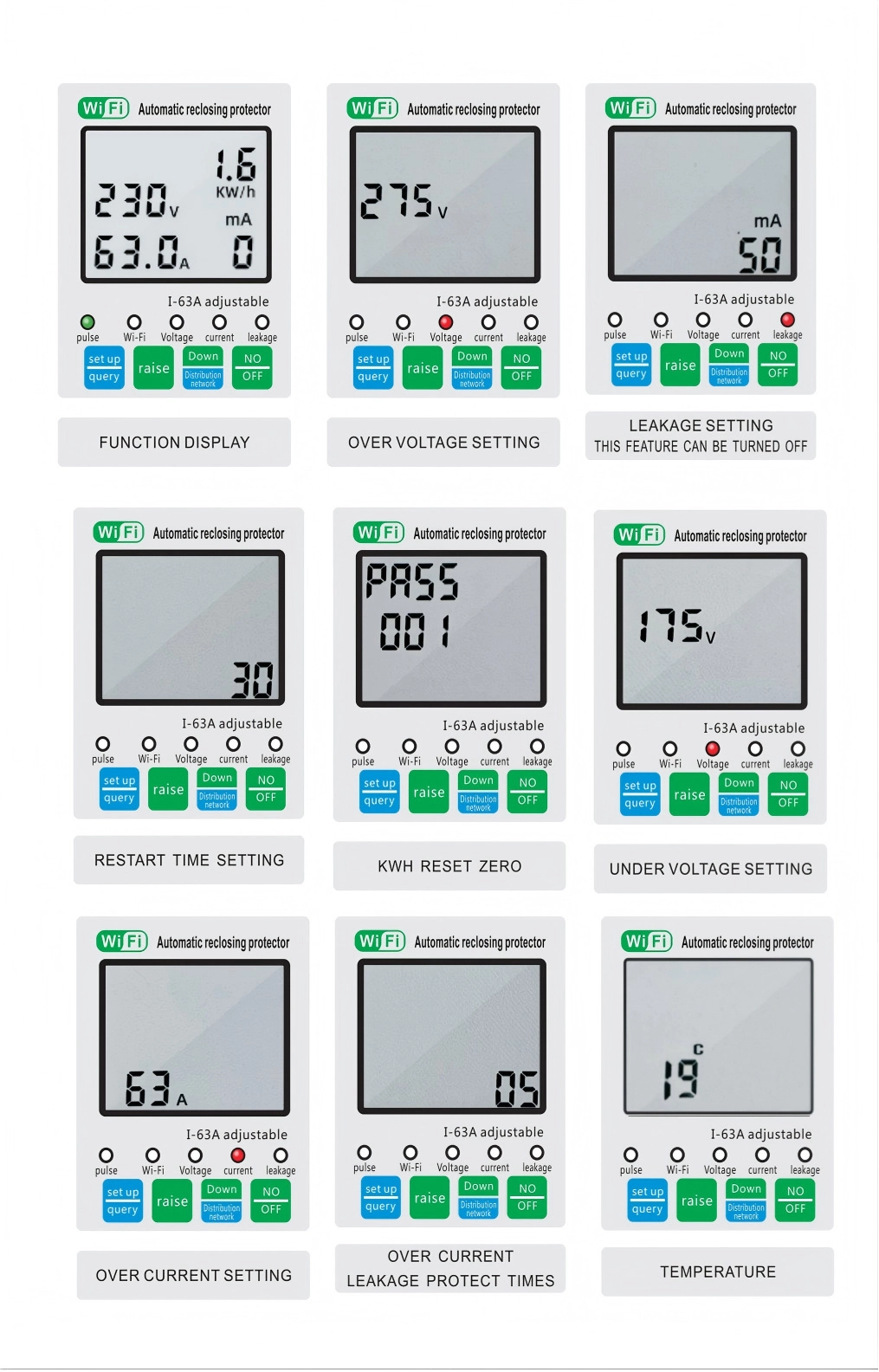

Product Details
OEM & ODM Services
We offer complete OEM & ODM services:
Application
Why Choose EcoNewlink
Shipping & Delivery
After-Sales & Support
FAQs
Explore our FAQ section for clear guidance on orders, shipping, customization, and after-sales service.
Tuya WiFi Smart Recloser
Can the device be shared with other users?
Yes. The Tuya app supports device sharing, allowing multiple users to monitor and control the device.
What protections does the device provide?
The breaker supports over-voltage, under-voltage, overcurrent, and leakage protection to improve electrical safety.
Does the breaker measure electricity consumption?
Yes. It includes a built-in energy meter that monitors voltage, current, and kWh power consumption in real time.
How is the breaker installed?

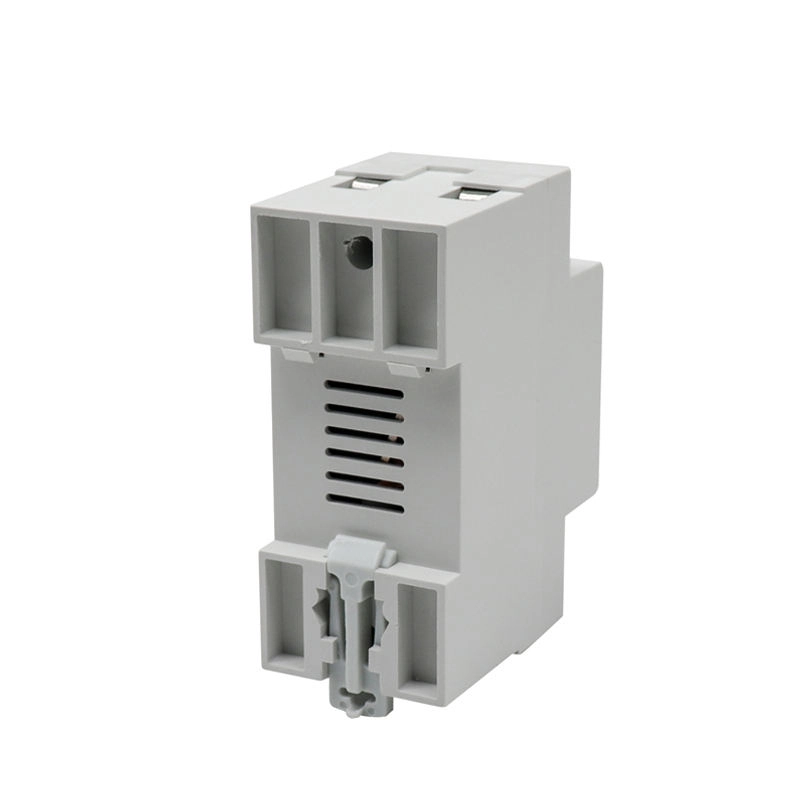

The device supports standard 35mm DIN rail installation, commonly used in electrical distribution boxes.
Can I control the breaker remotely?
Yes. Once connected to WiFi, you can turn the breaker on or off remotely through the mobile app.
Does it support voice control?
Yes. The device is compatible with Amazon Alexa and Google Assistant for voice control.
What is the working voltage range?
The working voltage is AC 80V–300V (single phase) with a rated voltage of AC110V / 230V.
What app does this WiFi circuit breaker use?
The device works with Tuya Smart and Smart Life apps, available for both Android and iOS.
